Providing Quality Drilling Equipment
We specialise in various types of drilling services using our wide range of drill rigs and service vehicles. We currently have 6 drill rigs and our rigs have top quality support equipment including tracked rod carriers, Morookas, Toyota light vehicles, mobile compressors, LED lighting towers, pumps, etc. Our team of experts ensure that every project is completed with the correct equipment at the highest level of quality and efficiency.
LF90 LS Drill Rig
​
Model: LF90 Long Stroke
Engine: Cummins 6 Cylinder Tier 3, Turbo charged water cooled diesel engine
Drill Capacity:
PQ - 576 mtrs
HQ – 722 mtrs
NQ – 1,064 mtrs
BQ -1,385 mtrs
Open hole rotary – 200 mtrs
Rotation Head: 4 speed rotation head
Mast: The mast can be set up for 6 metre rod pulls, allowing faster trip times, Increase production. Pull Down Force: 10,500 Kg.
Pull Back Force: 11,404 Kg.
Foot Clamp: Hydraulically operated Foot Clamp assembly PQ, HQ, NQ, BQ and rod break out tool.
Drill Angle: 45 -90°
Heli-flyable: Option to broken down to 500 kg lifts of 14 loads
Weight: 7,220 kg

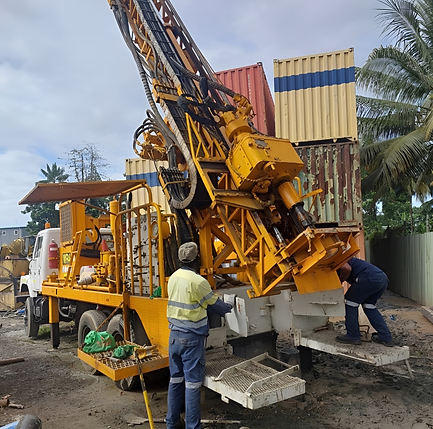

Bournedrill 500 THD Drill Rig
​
Model: Bournedrill 500 THD
Carrier: International S-Line 6 x 4
Engine: International DT466 6-cylinder Turbo Diesel engine
Drill Capacity:
PQ – 200 mtrs
HQ – 400 mtrs
NQ – 600 mtrs
BQ – 800 mtrs
Rotary Open hole – 250 mtrs
Rotation Head: 2 speed
Mast: 9m, mast dump
Bean Pump: Onboard, FMC Bean 3-cylinder core pump
Mud Pump: Onboard, 5 x 6 Gardner Denver mud pump
Levelling System: 4 Hydraulic levelling jacks
Safety WHS: Emergency stops, Rod guards, Spill kit, Fire extinguisher, First Aid Kit
Rig Dimension:
Overall length – 11.4 mtrs
Overall width – 2.45 mtrs
Overall transport height – 4.5 mtrs
Drill Angle: 40 -90°
Heli-flyable: Option to broken down to 500 kg lifts of 14 loads
Weight: 22,000 kg
Boart Longyear 44 Drill Rig
​
Model: Boart Longyear 44
Engine:
Deutz Engine Standard 115hp and modified 150hp, 4 Cylinder
Drill Capacity:
PQ – 200 mtrs
HQ – 400 mtrs
NQ – 600 mtrs
BQ – 800 mtrs
Rotary Open-hole 8” – 10” hole - 350 mtrs
Heli-flyable Rig
Weight:
Engine – 600 kg
Transmission – 600 kg
Gear Box – 100 kg
Head Assy – 250 kg
Chassis (base) – 450 kg
Chassis (upper) + bracket mast/hydraulic – 300 kg
Drum wireline/cable – 125 kg
Hydr. Pump/Control valve – 80 kg
Fuel Tank/Hydr. Tank – 70 kg
Mast Bottom – 160 kg
Mast Middle – 150 kg
Mast Top – 240 kg
Hydraulic Mast –110 kg
ID350 Diamond Drill Rig
​
Model: ID350
Engine: Kubota V 1505T 37 HP continuous @ 3000Rpm
Drill Capacity:
PQ – 80 mtrs
HQ – 180 mtrs
NQ – 350 mtrs
Hydraulics: 1x Variable displacement piston pump. 120 litres OR 1x 2 segment fixed displacement gear pump 60 litres and 30 litres
Rotation Head: Oil bath single gear reduction, 3.3:1 Piston motor torque, speed 750rpm, Torque 330 Nm @ 210 Bar, Head slide to allow 6 Metre rod pull.
Mast: 2 section lattice boom construction, allows 3.6 metres head travel via hydraulic cylinder, travelling block, wire rope and pulleys. Mast Length of 7.5 Metres allows for 6 Metre rod pull, Mast angle 90 to 45 Degree from horizontal
Filtration: In-Tank filter on return Oil
Heat Exchanger: Hydraulic Oil returns via water cooler
Pull Back: 3,200Kg @ 210 Bar
Pull Down: 1,800Kg @ 80 Bar
Main Winch: 2,700Kg @ 180 bar bare drum pull, 18 Metres 12mm wire rope
Wireline Winch: 1800Kg @ 170 bar, bare drum line pull 400 metres 6mm wire rope.
Control Panel: Mast tilt and mast dump are at the main chassis, all other hydraulic controls are at the articulated remote station for safe control and vision.
Head Traverse: Fast feed 0.5 M per sec, slow feed 0-2 M per min.
Foot Clamp: Hydraulic single cylinder 2 jaw Tungsten insert to accommodate PQ/HQ/NQ
Weight: 2100 kg
Custom Built Hand Carry Coring Rig
​
Model: Australian Custom Built Geotech Rig
Engine: Perkins 3 Cylinder, water cooled engine
Drill Capacity:
PQ – 20 mtrs
HQ – 50 mtrs
NQ – 70 mtrs
BQ – 100 mtrs
Mast: 6m rod handling
Wireline Winch: 1,000 kg pull, 6mm wire
Foot Clamp: PQ/HQ/NQ rod manual foot clamp
Weight: 1600 kg
Support Equipment
​
Morooka 01 fitted with 2 ton crane for lifting drill pipes, etc
Morooka 02 for transporting drill strings, etc
Nissan UD 10 Speed fitted with 4 ton Palfinger Hiab Crane
Nissan UD 10 Speed 10 ton truck Hino 700 10 ton truck
Mitsubishi Fuso 10 ton fitted with 20 ton hiab crane (heavy duty lifting)
Land Cruiser 5 Door Wagon (Mine Spec.)
3x 79 Series Toyota 10 Seater
​
​
